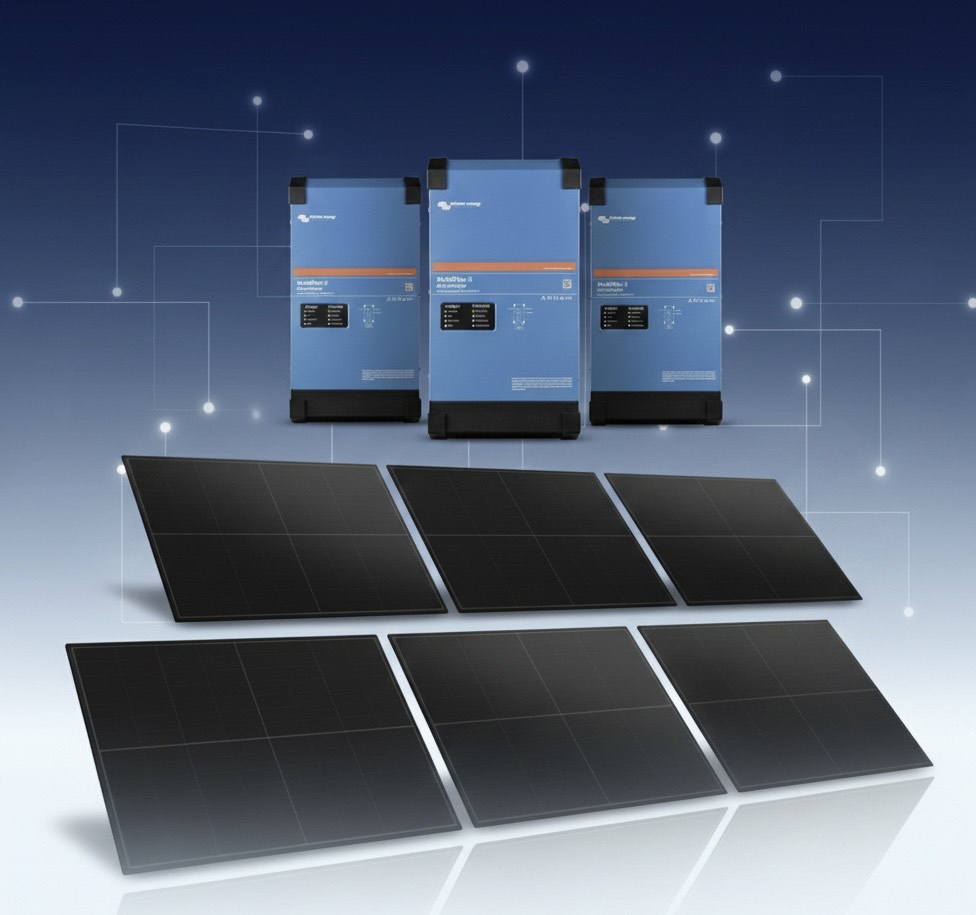

5.52 kWp solar system with 16 kWh battery
A solar-plus-storage system combining a 5.52 kWp PV array with 16 kWh of battery capacity for higher self-consumption and selected backup loads.
Available to enquire — configuration and availability confirmed individually
- Manufacturer
- Victron Energy
- Product code
- P00046
- Category
- Solar and storage systems
Technical selection guide
Where 5.52 kWp solar system with 16 kWh battery may fit
A solar-plus-storage system combining a 5.52 kWp PV array with 16 kWh of battery capacity for higher self-consumption and selected backup loads.
We treat the catalogue model as the start of engineering, not as a pre-approved design. For Victron Energy product code P00046, we confirm the currently supplied hardware revision, certificates, firmware, interfaces, warranty path and local service conditions before it enters a bill of materials.
| Review area | What we verify | Why it matters |
|---|---|---|
| Electrical design | Voltage window, continuous and peak power, protection and conductor sizing | Prevents incompatible equipment and nuisance trips |
| Control and data | BMS/EMS protocol, metering, export limits, remote access and firmware | Keeps the system controllable, observable and supportable |
| Site integration | Grid conditions, backup loads, environment, fire strategy and access | Connects product capability to the real operating scenario |
| Lifecycle | Warranty assumptions, cycles, spares, commissioning and service response | Protects availability and whole-life economics |
What the project-specific offer contains
- confirmed model, revision and locally applicable documentation,
- compatibility statement for the proposed system architecture,
- required protection, monitoring and communication interfaces,
- commissioning scope, acceptance criteria and service responsibilities.
We recommend this technology only when measured data and the complete system design show that it is the right technical and commercial fit.
Related technologies
Compare compatible alternatives.
The correct model depends on voltage architecture, power profile, communication requirements and service strategy.
First step
Data first. Technology second.
Describe the facility, operating problem and required outcome. We will identify the useful input data and propose an appropriate review scope.
