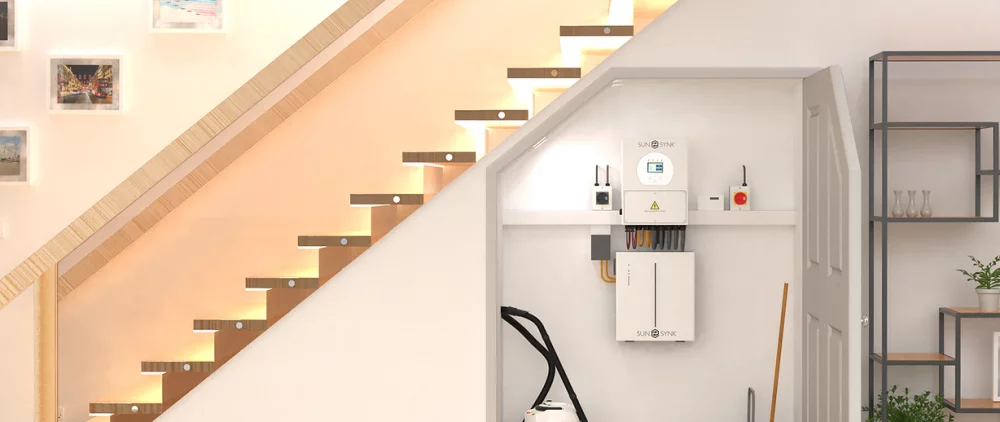

Sunsynk 3.6kW Ecco Hybrid Inverter

Reduce your electricity costs by managing power from various energy sources, including solar panels, batteries, the national electricity grid, a generator or even a wind turbine – all with a Sunsynk Hybrid Inverter. It’s ideal for home and business and scalable so that you can expand it as required.

• Start with UPS backup power (with batteries and inverter only) and add panels later.
• Start with Grid-tied (with panels and inverter only) and add batteries later.
• Install a complete Hybrid system including batteries and solar panels which can be expanded, or...
• Go totally off the grid with a completely independent system.

​Ideal for powering TVs, decoders, computer equipment and appliances that consume more energy such as fridges, microwaves, washing machines, dishwashers, kettles and toasters.

• Inputs:
  PV solar
  AC grid power
  Batteries
  Generator
• Output voltage -
  220/230/240Vac
• Continuous power -
  3600W
• Backup power - 3600W
• DC– 48V

• Battery charger– 90A

• Transfer time<= 10ms

• Battery chargeradjustable for battery bank size and type
  Can charge Lead Acid and Li-ion batteries
  Li-ion battery charging self-adapts to BMS

• Solar Input - 3.6kW Hybrid Inverter
  Max power input – 4680W
  Max DC input – 500V
  Max current input – 2 x 11A
  MPPTs – 2
  MPPT range – 125~425V

• Multi-core processor designand advanced MPPT control

• High reliability and response speed
• Programmable export
• Works parallelon or off-grid

• Single-phase operation
• Multiple operating modes:
  Grid-tie only
  Hybrid
  Off-grid
  Battery only

• Additional features
  AC couple – For additional PV input
  6 stages time of use settings
• ​IP65

​          Meter Port (Ecco model only)

• Solar Input - 3.6kW Ecco Hybrid Inverter
  ​Max power input – 7000W
  Max DC input – 500V
  Max current input - 2 x 13A
  MPPTS - 2
  MPPT range - 150~425V
