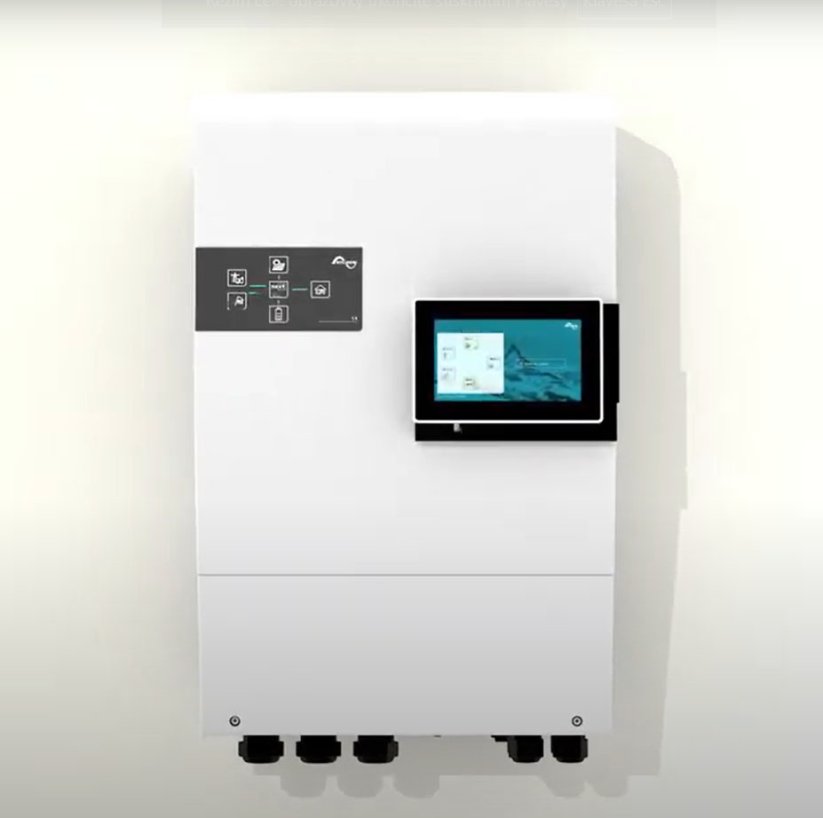

3-phase smart inverter charger NEXT3 Studer Innotec More

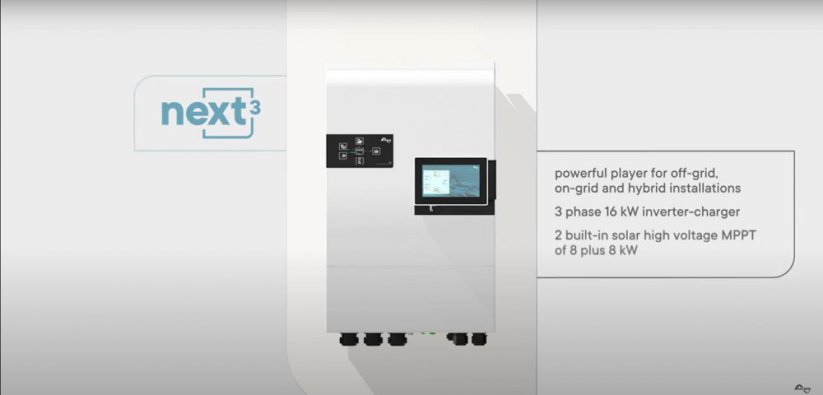

NEXT3 is an inverter charger with 2 built-in solar high voltage MPPT inputs with 8 + 8 KW. for off-grid, on-grid and hybrid installations.
Next3 includes 2 latest generation high voltage MPPT inputs for solar energy system up to 16 KW with many expansion modules.
Next3 is compatible with almost every 48V battery technology. The integrated CAN-BMS interface provides a plug and play solution with communicating lithium batteries.
The Smart Boost2 function helps to adapt to the limitations of the battery source in the most versatile way, facilitating for example phase balance or the elimination of fluctuations.
The innovative modular combination of hardware allows multi-unit, multi-battery systems to be combined using external transmission, enabling different battery technologies and increasing versatility with centralized management.
- Continuous power at 25 °C: 15,000 VA.
- Nominal output frequency: 50/60 Hz (± 0.02%).
- Harmonic Distortion (THD): <1%.
- Nominal battery voltage: 48 Vdc.
- Maximum charging current: 250 Adc.
- Dimensions: 320 / 450 / 760 mm.
https://youtu.be/97C18YG7fxg
Options & accessories
nx3 st
next3 full option (standard)
nx3 sti
next3 full option + interface
nx3 rack st
next3 full option (standard)
nx3 rack sti
next3 full option + interface
nx tempSensor
battery temperature sensor
nx interface
next3 user interface
nx wifidongle
nx bypass box
