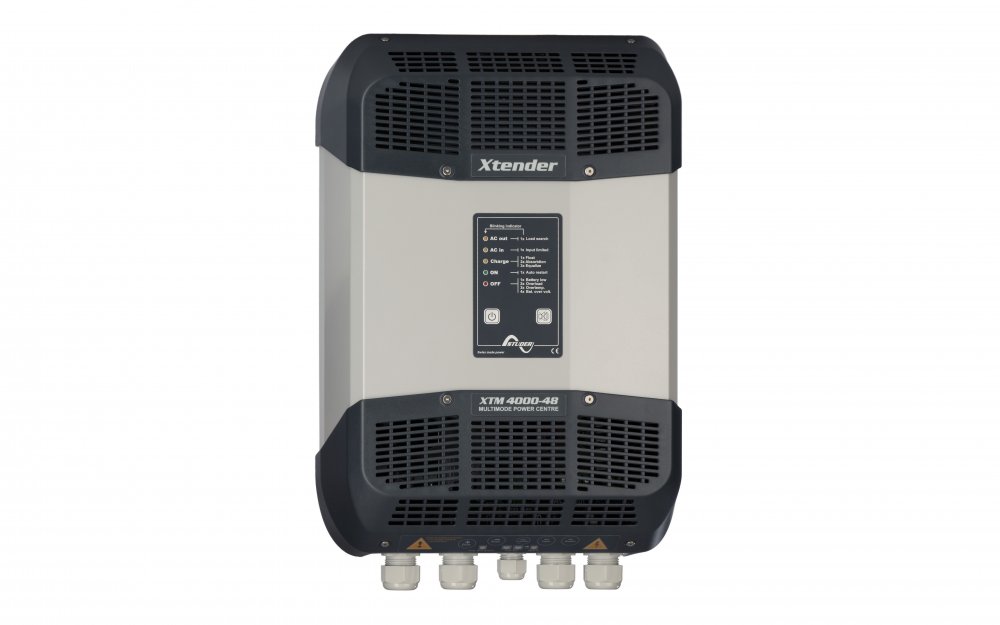

Hybrid voltage converter Studer Innotec XTM 4000-48, 4000W - 48V
XTM 4000- 48 is a great inverter for hybrid photovoltaic power plants installed on family houses. This is a very high-quality converter that can be used not only as the heart of a hybrid photovoltaic power plant, but also for larger and luxurious island systems.
The price of a separately purchased hybrid voltage converter differs from the price of a converter purchased in a set or when used as part of a turnkey hybrid photovoltaic power plant installation.
Hybrid inverters of the Xtender series can also be used in three-phase systems.
The Xtender has two auxiliary contacts that are configured by default for automatic generator start and alarm function. Thanks to the RCM-10 accessory, a remote input for external control of the inverter is possible. In addition, the Xtender can be equipped with a remote input that can be used to change functions or control the system externally.
Parameters
| Performance 30 min. / 5 sec | 4000VA / 10,5 kVA |
|---|---|
| Inverter nominal power (constant power) | 3500VA |
| Inverter system voltage | 48V |
| Maximum efficiency | 96% |
| Consumption OFF/Standby/ON | 1,8W / 2,1W / 14W |
| Width /mm/ | 133 |
| Height /mm/ | 466 |
| Lenght /mm/ | 322 |
| Degree of coverage | IP20 |
| Guarantee | 5 years |
