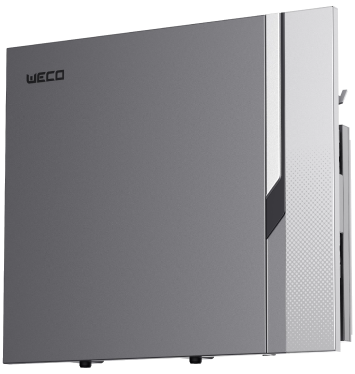

Lithium battery WeCo 4K5 ULTRA – 5,1 kWh

4K5 ULTRA is the World’s thinnest Dual Voltage  Li-Ion ESS

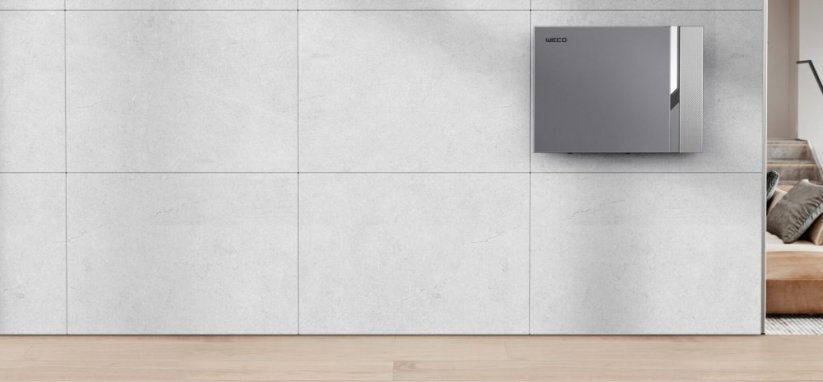

The WeCo 4K5 ULTRA modular lithium battery is one of the most advanced ones and, the thinnest one on the market for storage of photovoltaic solar energy systems. Due to it´s revolutionary parametres, it is perfect for smaller and narrower spaces, such as corridors and vestibules and, because it can be hung on the wall, it could also be percieved as an art object due to it´s clean and modern design.

Voltage Range - 46.5-58.4 V

Module Type - Prismatic Ultra-Thin

Cell Gross Capacity - 100 Ah

Rated Capacity - 5.1 kWh

DoD - 90%

Charge Mode - CC-CV

Rated Charge Current - 50 A ( 0.5C Suggested )

Max Charge Current - 100 A

Rated Discharge Current - 50 A ( 0.5C Suggested )

Max Discharge Current - 100 A

Communication Port - 2 x CAN 2.0 – 1 x RS232

Battery Protection - Over Charge / Over Discharge / Over Temperature / Over Current / Short Circuit

Dimensions ( HxDxW ) - 650x105x544 mm

Weight - 44 Kg

Installation - Wall Mounted

Warranty - 10 Years

Delivery Standard - UN 38.3

Protection Rating - IP54

Parallel Connection - Up to 15 Batteries in Parallel

PlugIn Device - V-BOOSTER Accessory to transform the LV module in HV Battery
